sportiva e-bike

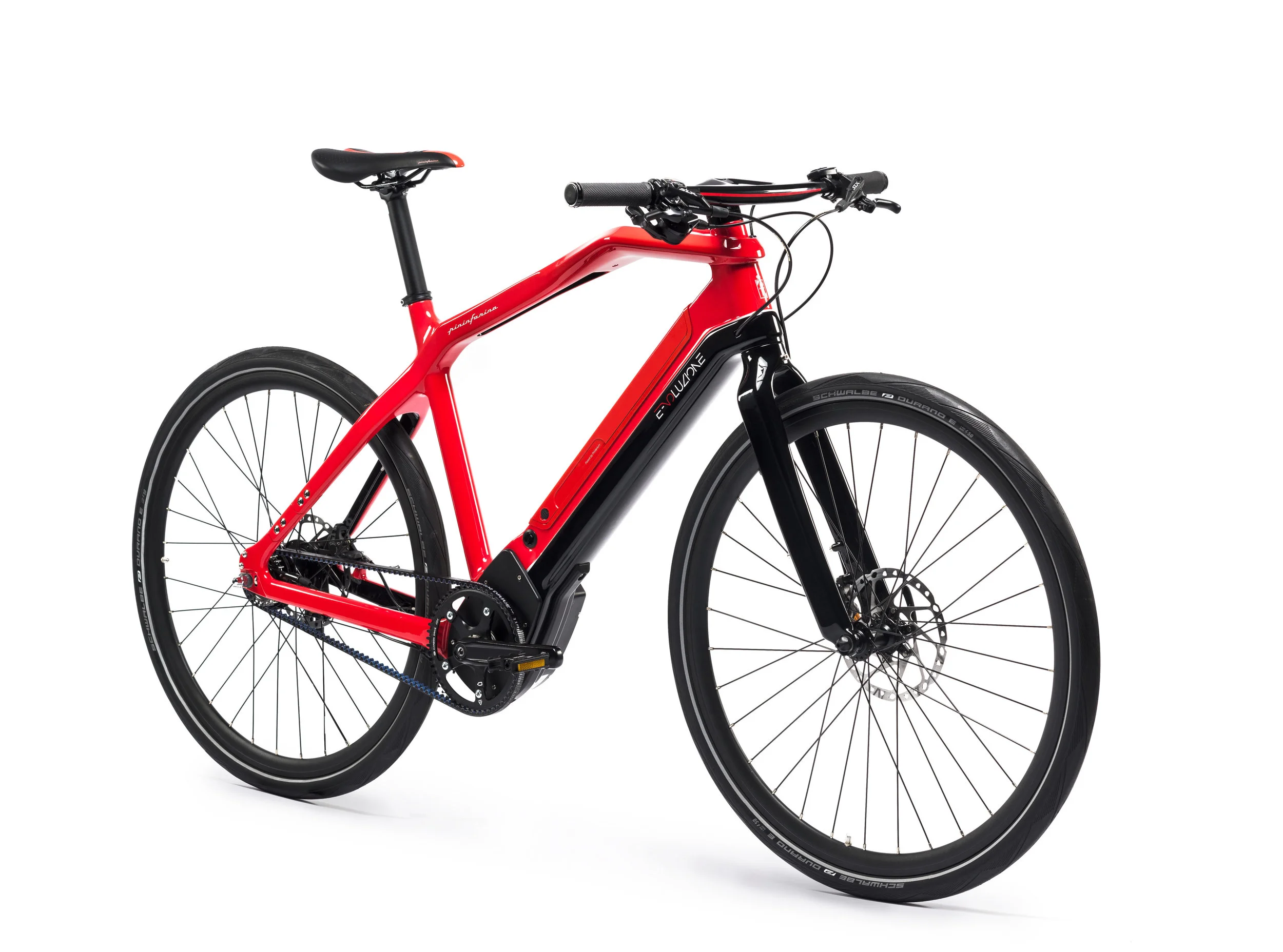

SPORTIVA
Red

rød pinin.jpg

Inspired by luxury cars designed by Pininfarina. Super sport combination colors and hi-drive performance.


SPORTIVA
Black - Black/Blue - Black/Red

sort pinin.jpg

Inspired by luxury cars designed by Pininfarina. Super sport combination colors and hi-drive performance.


SPORTIVA
Yellow

gul pinin1.jpg

Inspired by luxury cars designed by Pininfarina. Super sport combination colors and hi-drive performance.

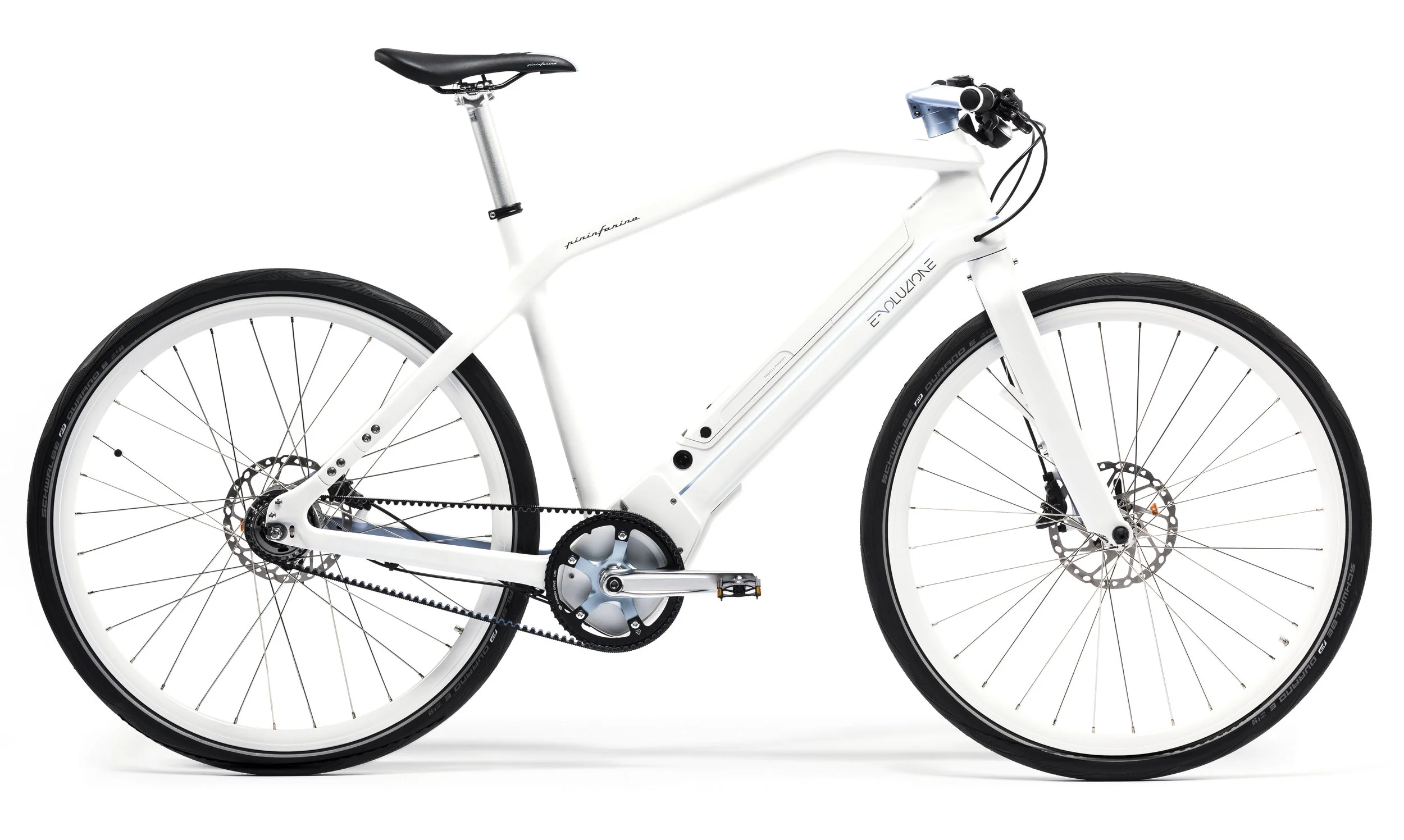

HI-TECH
White-Blue

Hvid pinin.jpg

The choice for those searching for technique, hi-tech and pure solution.

black with blueline.jpg

NEW SPORTIVA
Black/Blue & Black/Red

black with red line.jpg

The new 2018-2019 models. Inspired by luxury cars designed by Pininfarina. Super sport combination colors and hi-drive performance.



SPORTIVA 45 SPEED


Metal Blue/Red

The new 45 speed model. Up tp 45 km/h. Also available as mph. Inspired by race cars designed by Pininfarina. Sport combination of colors and
hi-drive performance.



SPECIFICATIONS

Frame Carbon 53 cm
Fork Full carbon
Battery Panasonic 500W-14Ah-36V integrated in frame, UART  BMS
Charger 36V CE standard
Indicator LCD Integrated Protanium
Motor / sensor / controller Brose mid motor
Rear Derailleur Shimano Deore XT 11spd / Shimano Nexus Alfine 8spd
Shifter Shimano XT 11spd / Shimano Nexus Alfine 8spd / Nuvinvi 380
Transmission Chain Shimano 120 links / Belt Gates
Front / Rear brake Shimano XT - hydraulic disc / SLX - hydraulic disc
Front / Rear hub Front Vuelta RD03F 24H  Through axle / Rear Vuelta RD02R 24H / Shimano Alfine 8spd / Nuvinci 380

Spoke 13G
Rims 36H 700c double wall
Tyre Schwalbe - Durano E Raceguard
Tube Schwalbe - AGV 40 mm
Handlebar Carbon rise
Stem Carbon 90mm
Grips Rubber L/R 135mm
Pedal With BS reflector
Saddle Comfort Pro
Seat post Zoom Alloy w-drive 31.6x350mm
Mirror/Rear Plate Available for 45 Speed
Weight 17.9 Kg

Sportiva Yellow - red - black/(red-blue) - white - metal blue/red
Hi-tech White & blue
Motor type Brose mid motor, brushless inner rotor
Weight 3.400 g
Dimensions 213 x 150 x 128 mm
Nominal voltage 36 V
Torque max. 90 Nm
Rated continous power 250 W
Assistance Up to 25 km/h / 45 Speed: Up tp 45 km/h  Also available as mph
Pushing aid up to 6 km/h (4 mph)
Ingress protection rating IP56
Level of ef ciency up to 75%
Gear ratio 1:27

Brose pininfarina.png


PATENTED TECHNOLOGY AND INSIDE FRAME BATTERY.

AERODYNAMIC DESIGN FROM WIND TUNNEL EXPERIENCE
